The Skyranger SW is the short wing version of the original Skyranger. It has the same hull as the
original Skyranger.
This allows a slightly faster cruising speed and more maneuverability around the longitudinal axis.
We also offer the new XLAM fabric as standard. There are also some changes in the cockpit.
Our software is also available with the SAUER
2,2l - motor. The unmistakable sound of a “real” aircraft engine is paired with the power that surprises
you.
The engine has a low speed, is air-cooled and very reliable. These are characteristics that
inspire. The simple structure of the
Skyranger SW provides inexpensive and carefree flying fun.

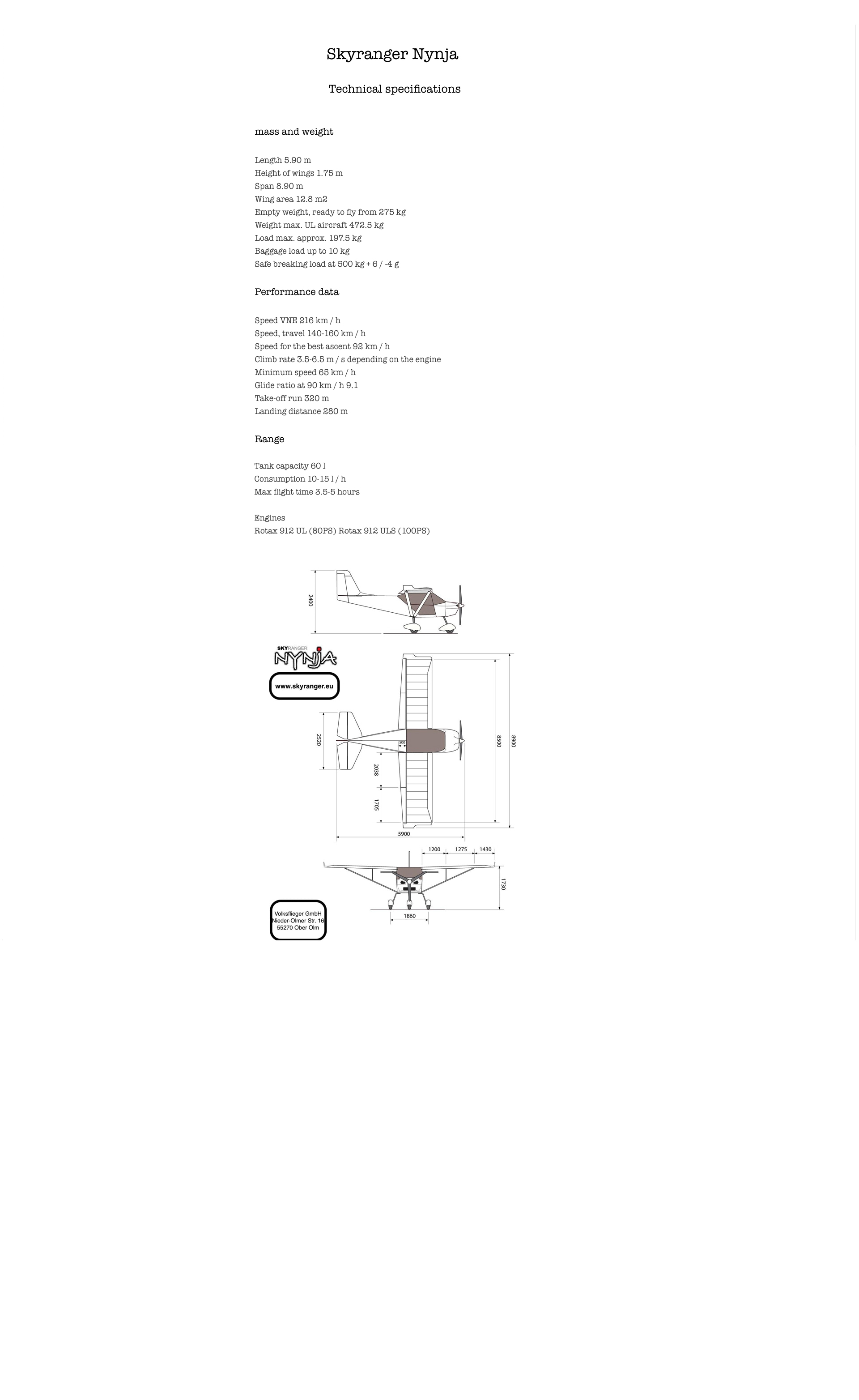

The Skyranger Nynja is the further development of the Skyranger. Instead of XLAM covering, the fuselage
cover is
completely made of fiberglass. This improves the aerodynamics and reduces the resistance with increased
performance.
The additional weight is compensated for by optimizing the rest of the aircraft, such as a
lighter landing gear. You can
also choose between the proven Rotax 912 UL with 80 or Rotax 912 S with 100 HP.
The larger doors make it easier to get in and the panoramic windows improve the all-round view.
Additional covers complete the overall look in the cockpit.
Price list valid from April 1st, 2020
All prices ex works, without packaging, delivery costs plus VAT
Item Description Unit price
1. Kit: SkyRanger SW / Swift as a quick assembly kit
Fuselage and surfaces with XLAM plastic covering UV-resistant,
Front GRP planked, color white,
Areas with wingtips, braking system, without floor, trim ropes,
Electrical system, fuel tank system, engine parts, propellers, instruments
450 / 472,5 kg 15.950 €
600 kg (work in progress) 18.450 €
2. Kit: SkyRanger Nynja as a quick assembly kit
Surfaces with XLAM plastic covering UV-resistant,
GFK clad hull, color white,
Areas with wingtips, braking system, without floor, trim ropes,
Electrical system, fuel tank system, engine parts, propellers, instruments
450 / 472,5 kg 598 €
600 kg (work in progress) 598 €
3. Wheel covers and nose gear cover 598 €
4. Floor, trim ropes, rudder limitation, cabin heating 498 €
5. Tank system 60 liters, filling from outside, electr. Fuel pump,
Filters and fuel hoses 498 €
6. Flight instruments:
Compass, trip meter, altimeter, variometer, turn indicator 998 €
7. Motorinzelinstrumente:
For 4-stroke engines: 1xCHT, 1xEGT, TiniTach tachometer
with operating hours counter, oil pressure indicator, oil temperature indicator 798 €
8. Motor instrument:
Engine Information System, (EIS), weight 0.4 kg 798 €
9. Electrical system:
Battery 12V / 12AH, main switch, fuses, switch, socket, cable. 598 €
Options
10. Position lights LED with flash function 598 €
11. White LED rear light 304 €
12. ACL flash LED 474 €
13. Landescheinwerfer 35W LED Power 474 €
14. ICOM IC-A16E radio, cable set and antenna 529 €
15. Airborne radio, fixed installation with cable set and antenna 1600 €
16. Galaxy rescue device 4000 €
17. Adjustable seats 100 €
18. Concave doors for an inner diameter of 120cm 500 €
19. Aircraft towing equipment 1950 €
Item Description Unit price
20. Engine Sauer S2200UL (85PS @ 3000rpm), engine mount, exhaust system,
Cooling system, fuel pump, lima regulator, etc., approx. 76 kg 11.500 €
21. Motor Sauer S2400UL (90PS @ 3000rpm), motor mount, exhaust system, 12.400 €
Cooling system, fuel pump, lima regulator, etc., approx. 76 kg
22. Motor Rotax 912S, (100HP @ 5800rpm) engine mount, exhaust system, 17.500 €
Cooling system, fuel pump, lima regulator, etc., approx. 80 kg
23. Propeller including all connecting parts, screws, 2 or 3-blade carbon fiber, 1000 €
or 2-blade NCP (Natural Composite Propeller)
24. Assembly of the aircraft (approx. 800 hours), routine testing and approval 12.950 €
25. Acceptance of the construction sections and rechecking for self-construction 1.950 €
Further options such as transponders, collision warning devices, etc. are possible.
Prices for the ready-to-fly Skyranger SW / Swift aircraft
26. Finished aircraft, S2200UL engine, without rescue equipment and radio 44.490 €
27. Finished aircraft, S2400UL engine, without rescue equipment and radio 45.390 €
28. Finished aircraft, Rotax 912S engine, without rescue equipment and radio 50.490 €
29. Rotax 912S tow plane with tow coupling, without rescue equipment and radio 52.440 €
All prices ex works, without packaging, delivery costs and plus VAT.
